Sale!
WS2812B LED Strip Individually Addressable Smart RGB LED Strip Waterproofith and 28Keys Bluetooth Music Controller Kit DC5V
WS2812B LED Strip Individually Addressable Smart RGB LED Strip Waterproofith and 28Keys Bluetooth Music Controller Kit DC5V - Image 2
WS2812B LED Strip Individually Addressable Smart RGB LED Strip Waterproofith and 28Keys Bluetooth Music Controller Kit DC5V - Image 3
WS2812B LED Strip Individually Addressable Smart RGB LED Strip Waterproofith and 28Keys Bluetooth Music Controller Kit DC5V - Image 4
WS2812B LED Strip Individually Addressable Smart RGB LED Strip Waterproofith and 28Keys Bluetooth Music Controller Kit DC5V - Image 5
WS2812B LED Strip Individually Addressable Smart RGB LED Strip Waterproofith and 28Keys Bluetooth Music Controller Kit DC5V - Image 6

WS2812B LED Strip Individually Addressable Smart RGB LED Strip Waterproofith and 28Keys Bluetooth Music Controller Kit DC5V

USD $ 7.44 – USD $ 20.67

SKU: 1005005944640886 Category:

Description

  • Is Smart Device: YES
  • Power Generation: SWITCH
  • Model Number: WS2812b
  • LED Chip Model: SMD5050
  • Average Life (hrs): More than 50000Hours
  • Certification: CCC,ce,FCC,ROHS
  • Power Source: DC
  • Origin: Mainland China
  • Strip type: SMD
  • Power Consumption (W/m): 11.52W/m
  • Occasion: LIVING ROOM
  • Specifications (light beads / m): 30/60/144
  • Item Type: Strip
  • Brand Name: TNALANT
  • Voltage: 5V
  • LEDs Number/M: 30/60/144leds/m
  • LED Chip Brand: Epistar
  • Waterproof: Yes
  • Color Temp(K): 3000-6500k
Pay attention：

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！
2. IP30: Non- Waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube
this link is not include power supply ,please know it

Pay Attention

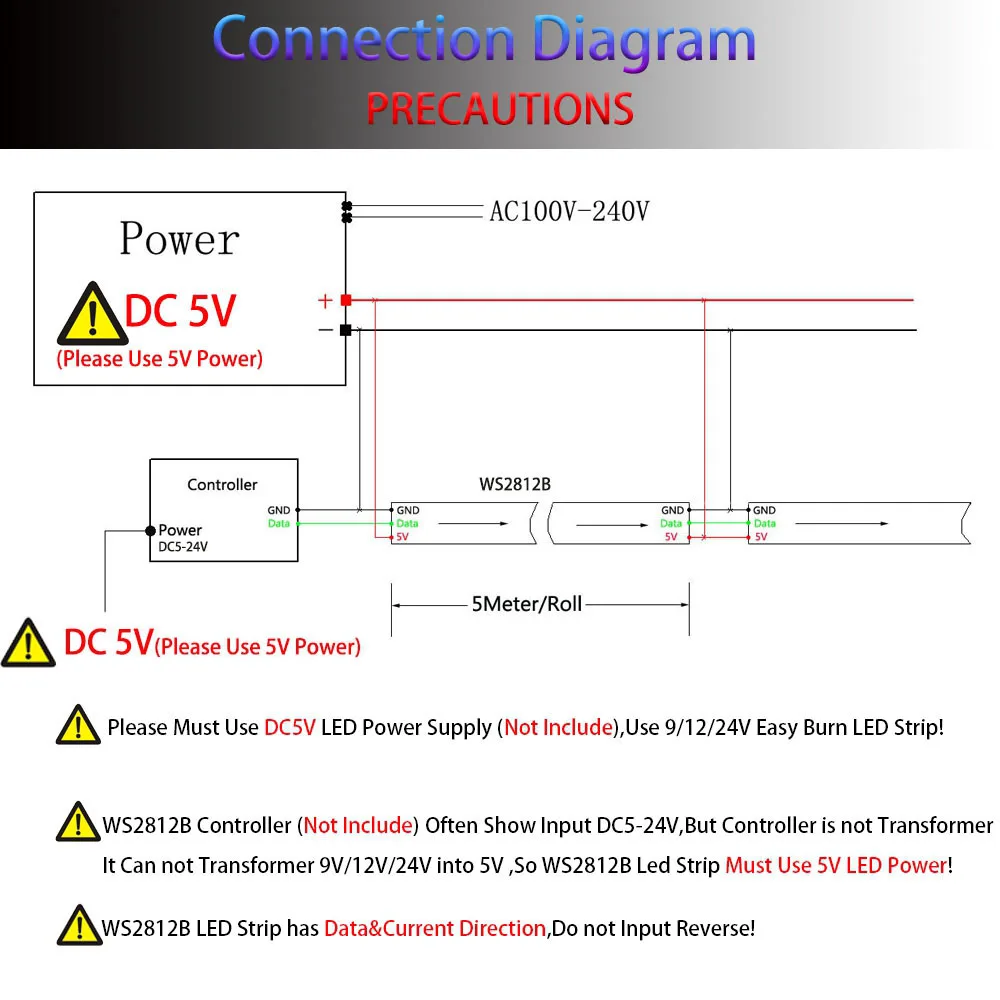

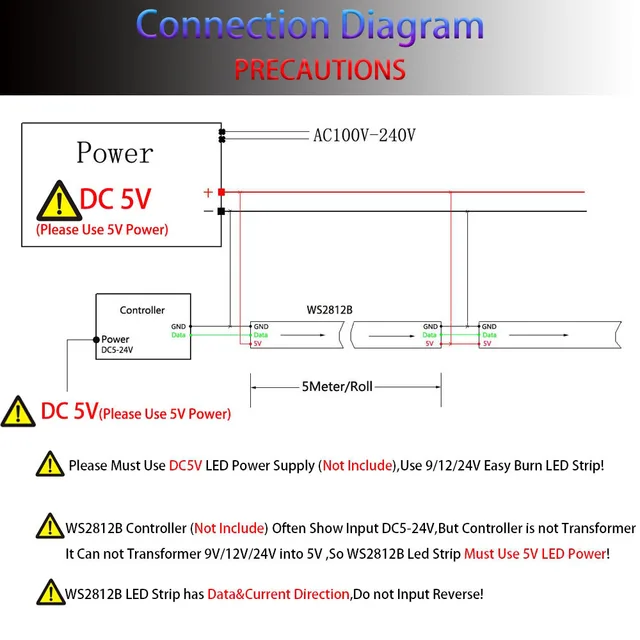

(Important: WS2812B Must Work With 5V LED Power Supply,Over DC5.5V Will Burn Led Strip)

Product Decsription:
1. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.
2. The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.
3. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.
4. Do Not Bend Strip Sharply.
5. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.
6. 3-Pin JST Connector Wire is 20AWG.
Products Application:
WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.
Product Details:
Input Voltage: DC5V
Power: 30Leds/m—-9Watt/meter
60Leds/m—-18Watt/meter
144Leds/m—-43.2Watt/meter
LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
LED: Each Led is Separately Controlled
IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
Of IC: 1 IC Drives 1 Led Chip
Pixels: 30/60/96/144/Meters

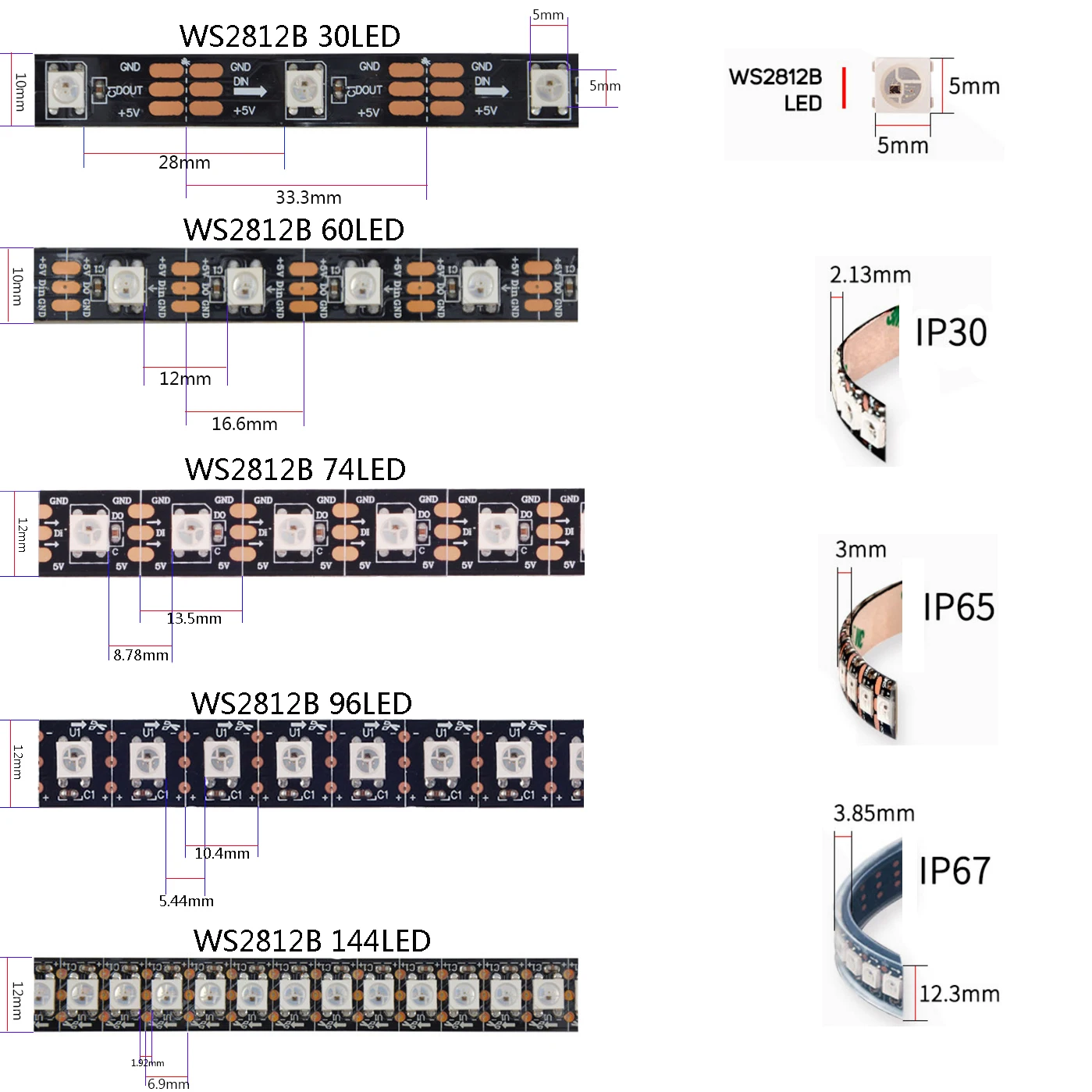

Pitch: 16.6mm(1000/64)
Grey Scale: 256
Bits/Color: 8-Bits/Color
FPC Width: 30Leds/m—-10mm
60Leds/m—-10mm
144Leds/m—-12mm
FPC color: Black/White
Protection Rate: IP30/ IP65 /IP67
Colors: Full Color RGB, Dream Color Changing
Cuttable: Every LED is Cuttable
Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)
Package Included:
Led Strip kit
1*1m/2m/3m/4m/5m Led Strip

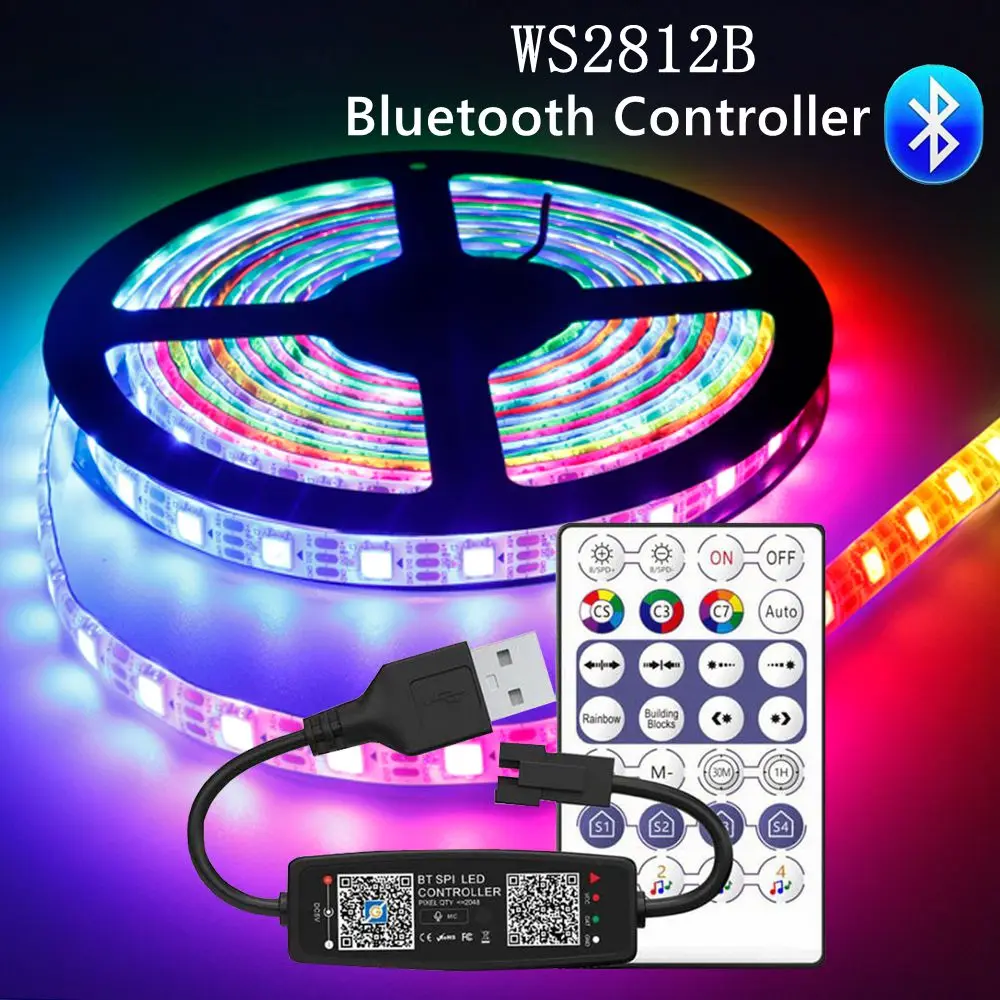

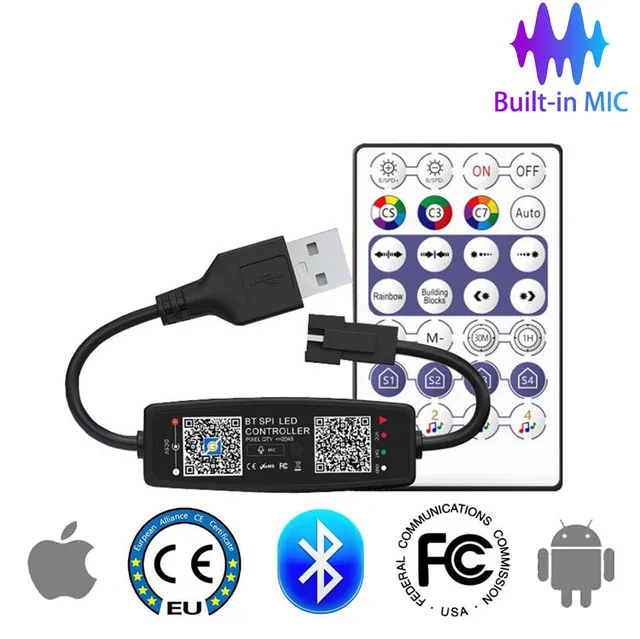

1*28Keys USB Led Controller（Without battery）

Additional information

Emitting Color

Black PCB, White PCB
Wattage

1M 144 IP30 kit, 1M 144 IP65 kit, 1M 144 IP67 kit, 1M 30 IP30 kit, 1M 30 IP65 kit, 1M 30 IP67 kit, 1M 60 IP30 kit, 1M 60 IP65 kit, 1M 60 IP67 kit, 2M 144 IP30 kit, 2M 30 IP30 kit, 2M 30 IP65 kit, 2M 30 IP67 kit, 2M 60 IP30 kit, 2M 60 IP65 kit, 2M 60 IP67 kit, 3M 30 IP30 kit, 3M 30 IP65 kit, 3M 30 IP67 kit, 3M 60 IP30 kit, 3M 60 IP65 kit, 3M 60 IP67 kit, 4M 30 IP30 kit, 4M 30 IP65 kit, 4M 30 IP67 kit, 4M 60 IP30 kit, 4M 60 IP65 kit, 4M 60 IP67 kit, 5M 30 IP30 kit, 5M 30 IP65 kit, 5M 30 IP67 kit, 5M 60 IP30 kit, 5M 60 IP65 kit, 5M 60 IP67 kit
