Description

Pay Attention：

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

2.You Must need a Data LED Controller and a Led Power Supply to light up LED Strip.This link is Not include power supply and Not include led controller,please know it

~WS2812B / WS2813 Must Use DC5V Led Power Supply

~WS2811 / WS2815 Must Use DC12V Led Power Supply

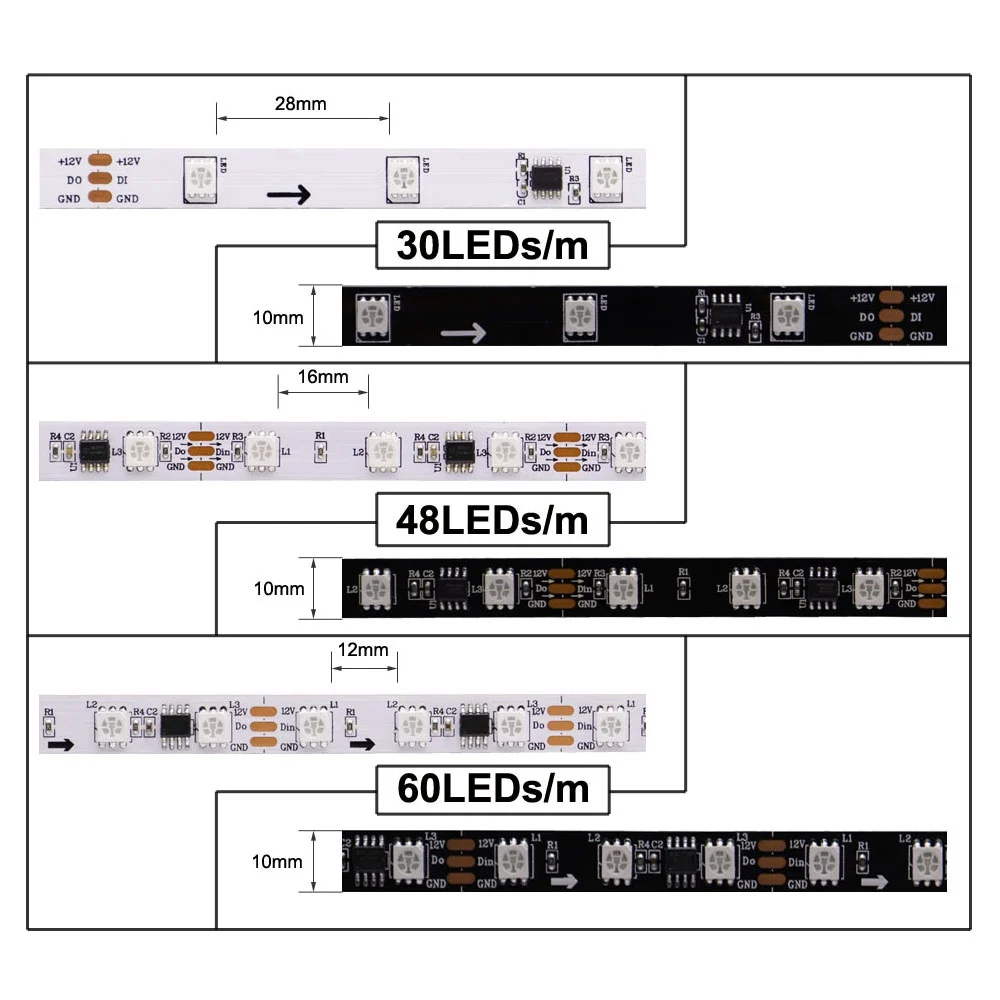

WS2811 LED Strip:

(1) Working Voltage: DC 12V

(2) LED Source: SMD 5050 RGB

(3) LED Chip: Epistar

(4) LED QTY: 30/60 LED / M

(5) IC QTY: 10/20M

(6) Power: 9/18W /M

(7) Grey scale: 256 / Color

(8) Cutability: 3 led / cutting (Similar WS2811, 1 ic control 3 LED)

(9) Beam Angle: 120 °

(10) Color Mode: 133Pattern & 100 Speeds

(11) IP Grade: ip30 non -waterproof / ip67 waterproof

(12) Dimension: 5000 x 10 x 2.4mm

(13) Packaging: 5m/roll 12v WS2811 RGB Strip + 3Pin Connector

(14) Warranty: 2Years

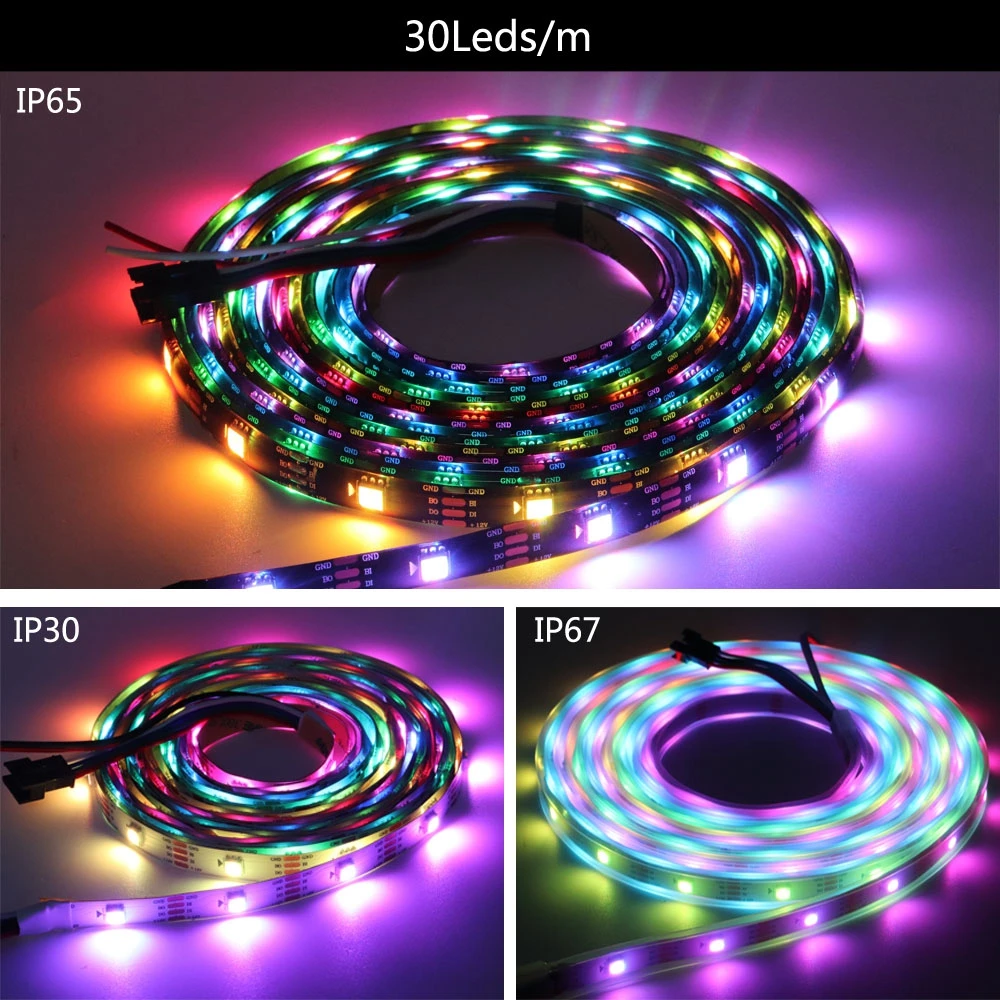

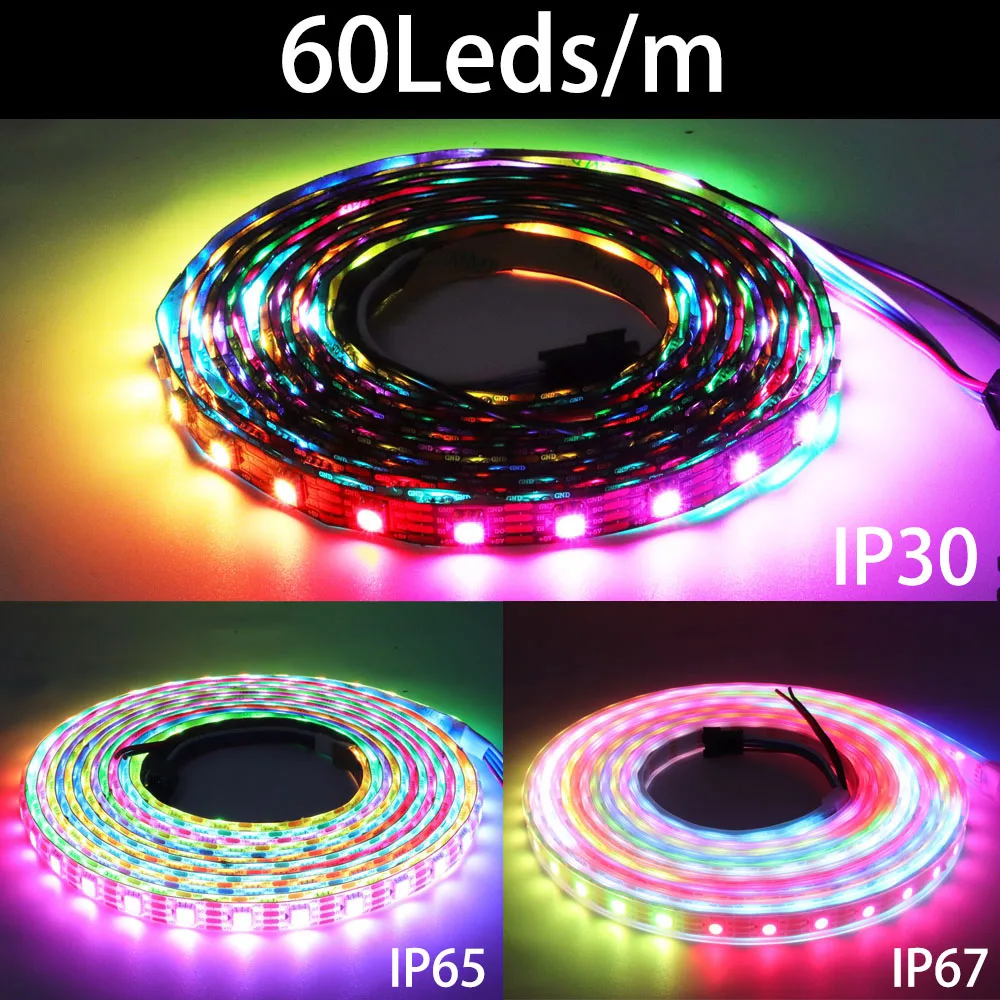

WS2812 LED Strip:

Input Voltage: DC5V

Power:

30Leds/m—-9Watt/meter

60Leds/m—-18Watt/meter

144Leds/m—-43.2Watt/meter

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

Pixels: 30/60/144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

FPC Width:

30Leds/m—-10mm

60Leds/m—-10mm

144Leds/m—-12mm

FPC color: Black/White

Protection Rate: IP30/ IP65 /IP67

Colors: Full Color RGB, Dream Color Changing

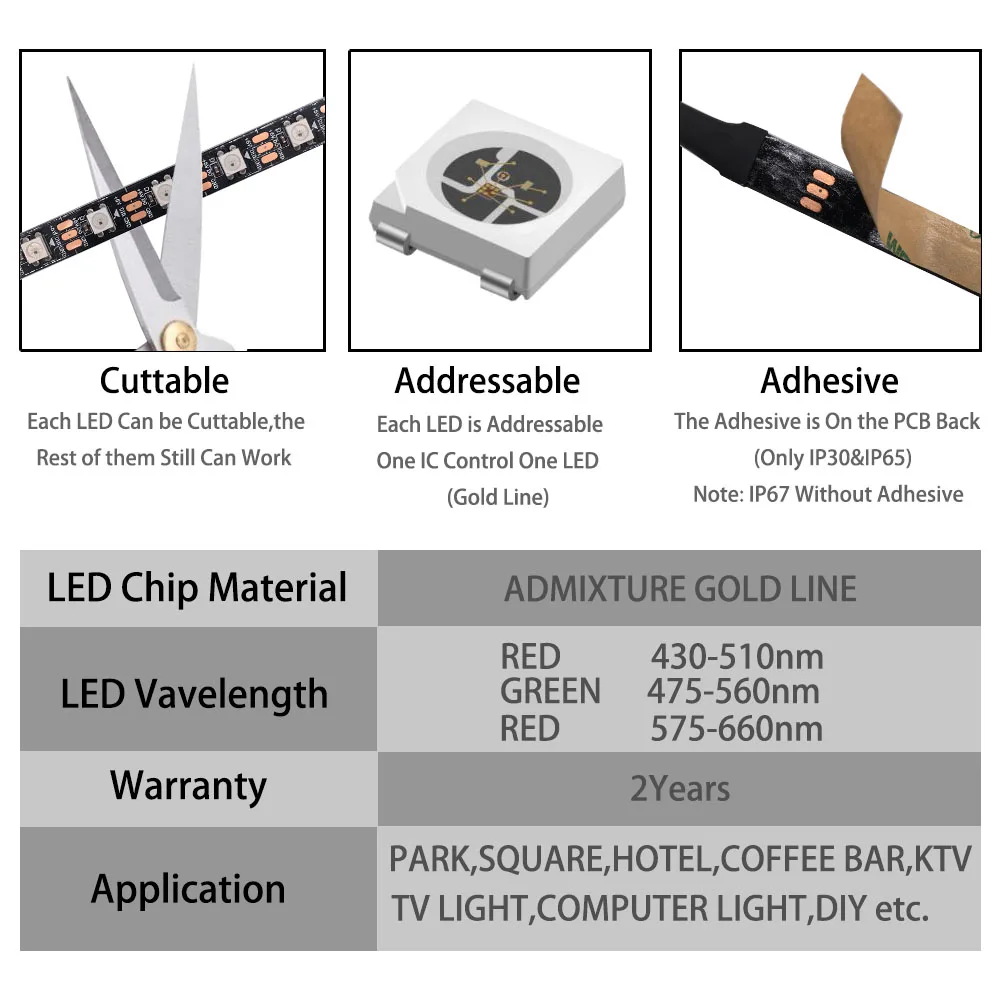

Cuttable: Every LED is Cuttable

Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)

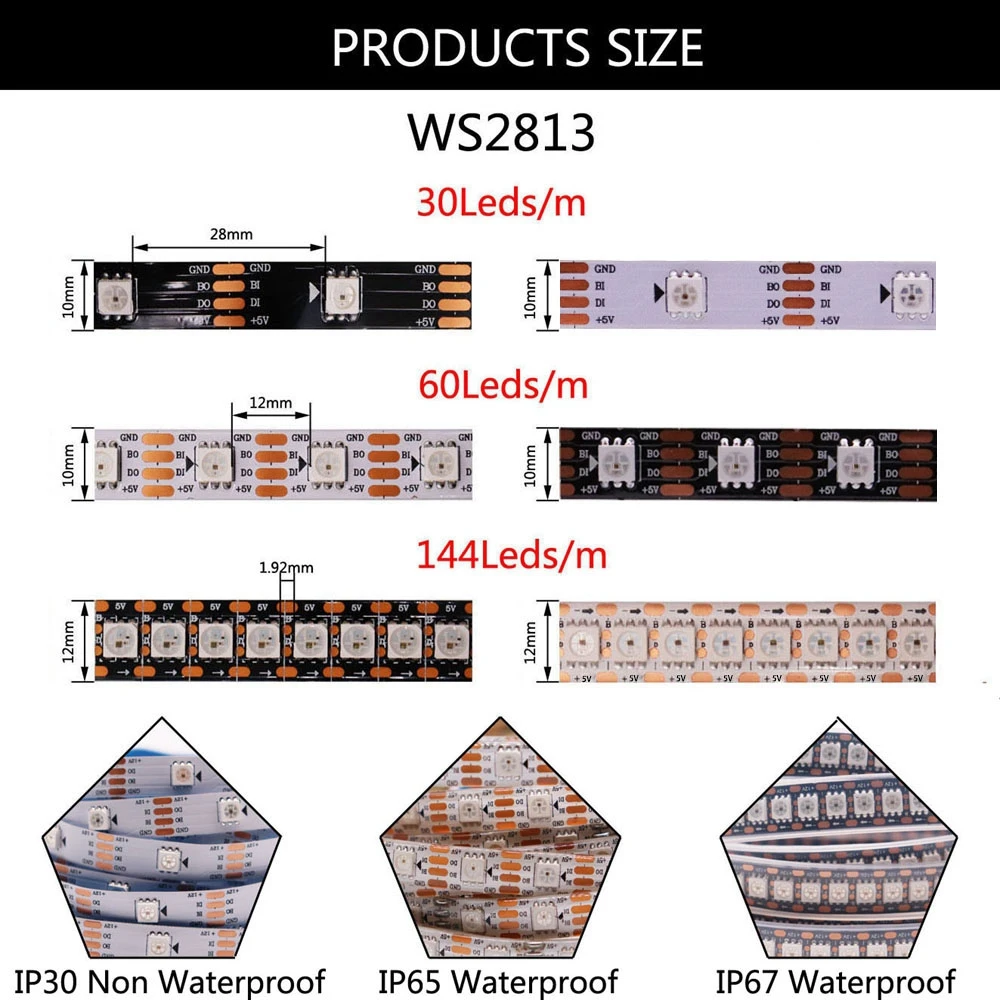

WS2813 LED Strip:

Input Voltage: DC5V

Power: 30 Leds/M — 9 Watt/Meter / 60 Leds/M — 18 Watt/Meter / 144 Leds/M — 43.2 Watt/Meter

LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: Each LED is separately controlled

IC Type: Improved version ws2813 IC(built inside the 5050 smd rgb led)

Of IC: (1 IC Drives 1 led chip)

Pixels: 30Leds/60Leds/144Leds/meter

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Colors: Full color RGB, dream color changing

Bits/Color: 8-Bits/Color

FPC Color: BLACK / White

FPC Width: 30 Leds/M — 10 MM / 60 Leds/M — 10 MM / 144 Leds/M — 12 MM

Protection Rate: IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube

Cuttable: Every LED is cuttable

Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with one free male connector for connector

Working Temperature: -40 – 70 °C

Storage Temperature: -50 – 80 °C

Source Life: 50,000 hours

Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)

Recommand controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K

WS2815 LED Strip:

Input voltage:………….DC12V;

Power:…………………..30leds/m—-9watt/meter

           …………………..60leds/m—-18watt/meter

           …………………..144leds/m—-34watt/meter

LED resource:………..WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: ……………Each LED is separately controlled

IC Type: ………………..Improved Version WS2815 IC(built inside the 5050 smd rgb led)

of IC: ………………(1 IC drives 1 led chip);

Pixels: ………30/60/144/meter;

Pitch: ……………………16.6mm(1000/64);

Grey scale: ……………256;

Bits/color: ……………..8-bits/color;

FPC Width: :…………..30leds/m—-10mm

             …………………60leds/m—-10mm

             …………………144leds/m—-12mm

FPC color: ………White/Black PCB

Protection rate ……IP30/ IP65 /IP67

Colors: …………………..Full color RGB, dream color changing;

Cuttable:…………………every LED is cuttable;

Package: ……………….in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)

Working temperature……………-40 ~ 70 °C

Storage temperature……………-50 ~ 80 °C

Source life ……………50,000 hours

Connector ……………4PIN Connector terminal pair

(Red: 12V power , Green: Date line, Blue: standby date line,Black: GND)
